Tau G3 Peak
Exceptional Performance

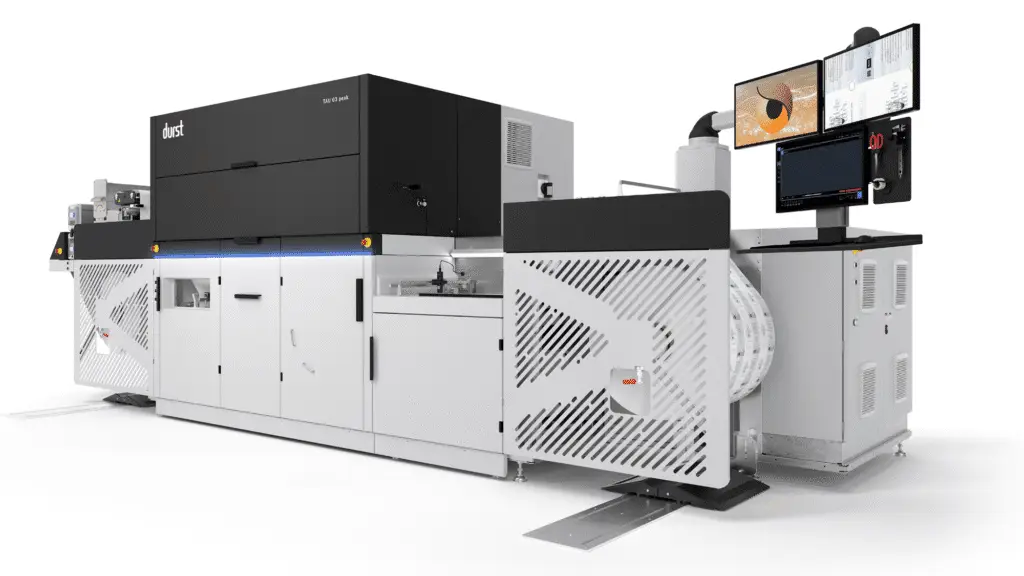

The Durst Tau G3 Peak empowers your business and takes label printing to the next level. This powerhouse achieves 80 m/min and can optionally be expanded to 100 m/min, depending on configuration, with impressive 1,200 dpi resolution. The G3 Peak offers 338, 420 or 510 mm (13.3, 16.5 or 20in) print widths, and supports CMYK plus extended gamut options, making the G3 Peak the choice for maximum reliability, minimal complexity and exceptional performance.
High End Labels, Every Time

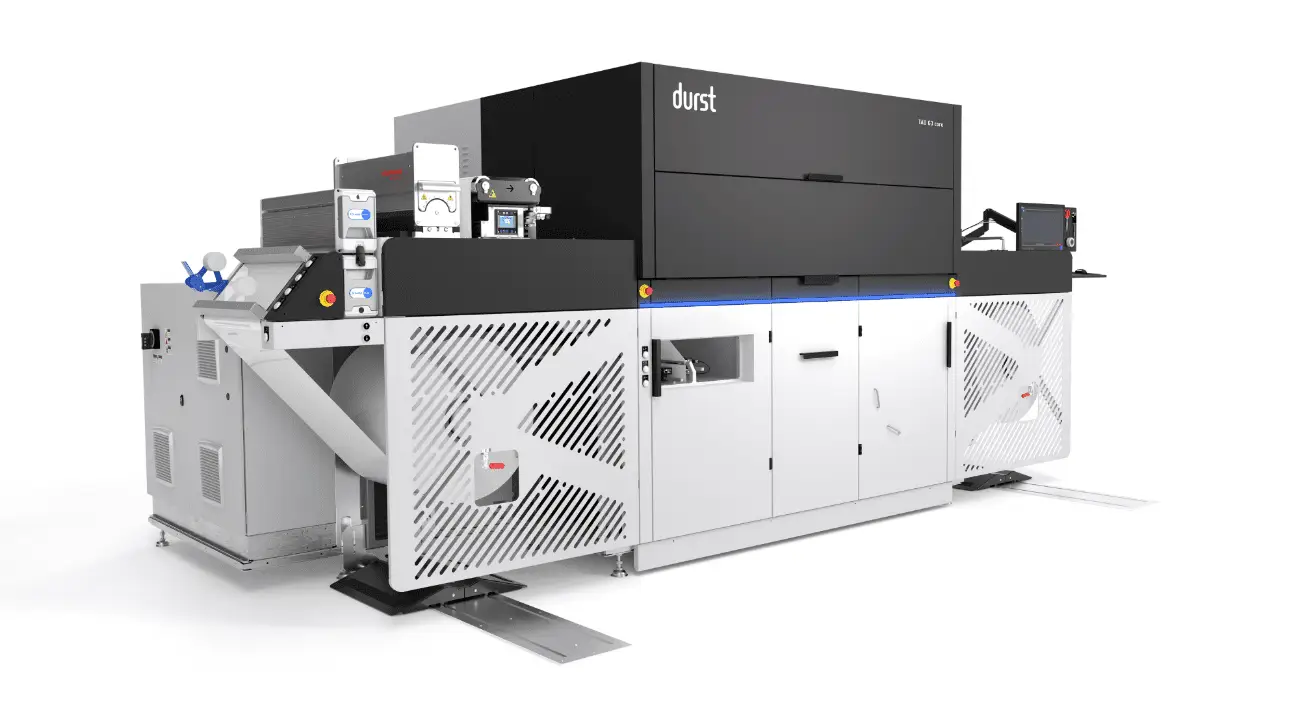

Built on the proven Tau RSC design, Durst is opening the next chapter in digital labels printing with the new G3 line. Users benefit from maximum print quality, easy operation, integrated software solutions, and a platform designed for reliability and future-proof performance. G3 introduces intuitive LED status displays, improved ergonomics, and optimized serviceability. A redesigned cooling system, electrical cabinet, and improved component accessibility simplify handling and maintenance. The ergonomic inspection unit, equipped with D50/RGB lighting and flexible adapters for inspection systems, further enhances process reliability.
The Tau G3 also integrates the new Durst ARC (Automatic Register Control) for real-time color registration, waste reduction, and quality enhancement, and the new Durst MEP (Material Edge Protection), which safeguards printheads with optical edge sensors and protective plates.
In addition, Durst HAWK AI, Durst’s intelligent monitoring and assistance system, can be included to automate the color to color register and to provide closed loop nozzle correction during printing.
The G3 is the next generation in UV inkjet label printing, offering effortless engineering, unwavering reliability, and exceptional performance, every time.
Request a Brochure
Tau 340 RSC E Product Brochure
Technical Specifications
| Specification | Value |
|---|---|
| Print Resolution – Native | 1,200 x 1,200 dpi |
| Minimum Drop Size – Greyscale Levels | 2 pl – 3 levels: 2 – 4 – 6 pl |
| Print Speed | Up to 100 m/min (382 ft/min) |
| Print Width | 340/420/510 mm (13.3/16.5/20 in) |
| Inks | Tau RSC LED or Tau RSC UV 3 ink |
| Substrate Width | Min. 350 mm (13.7 in) – max. 520 mm (20.5 in) |
| Substrate Thickness | 20 µm to 500 µm. With chill roller: *20 µm to 500 µm |
| Substrate Type |
Coated and uncoated, supported and unsupported substrates. Paper, white and transparent film, PP, PE, PVC, PET, BOPP, *only aluminum foil and PET |
| Optional Software | Durst Hawk AI, Durst ARC, Durst MEP |
