P5 350 HSR
The High Speed 3.5m Roll-to-Roll LED Printer
The P5 350 HSR is the high productive solution for roll-to roll printing up to 3.5 m and reaches a productivity up to 7,212 sq.ft/h (670 sqm/h) for unattended production.
INTEGRATED CUTTING SYSTEM
PRECISE MEDIA TRANSPORT FOR UNATTENDED PRODUCTION
DUAL ROLL OPTION
MASTER ROLL FOR LONG RUN ATTENDED PRODUCTION
P5 350 HSR

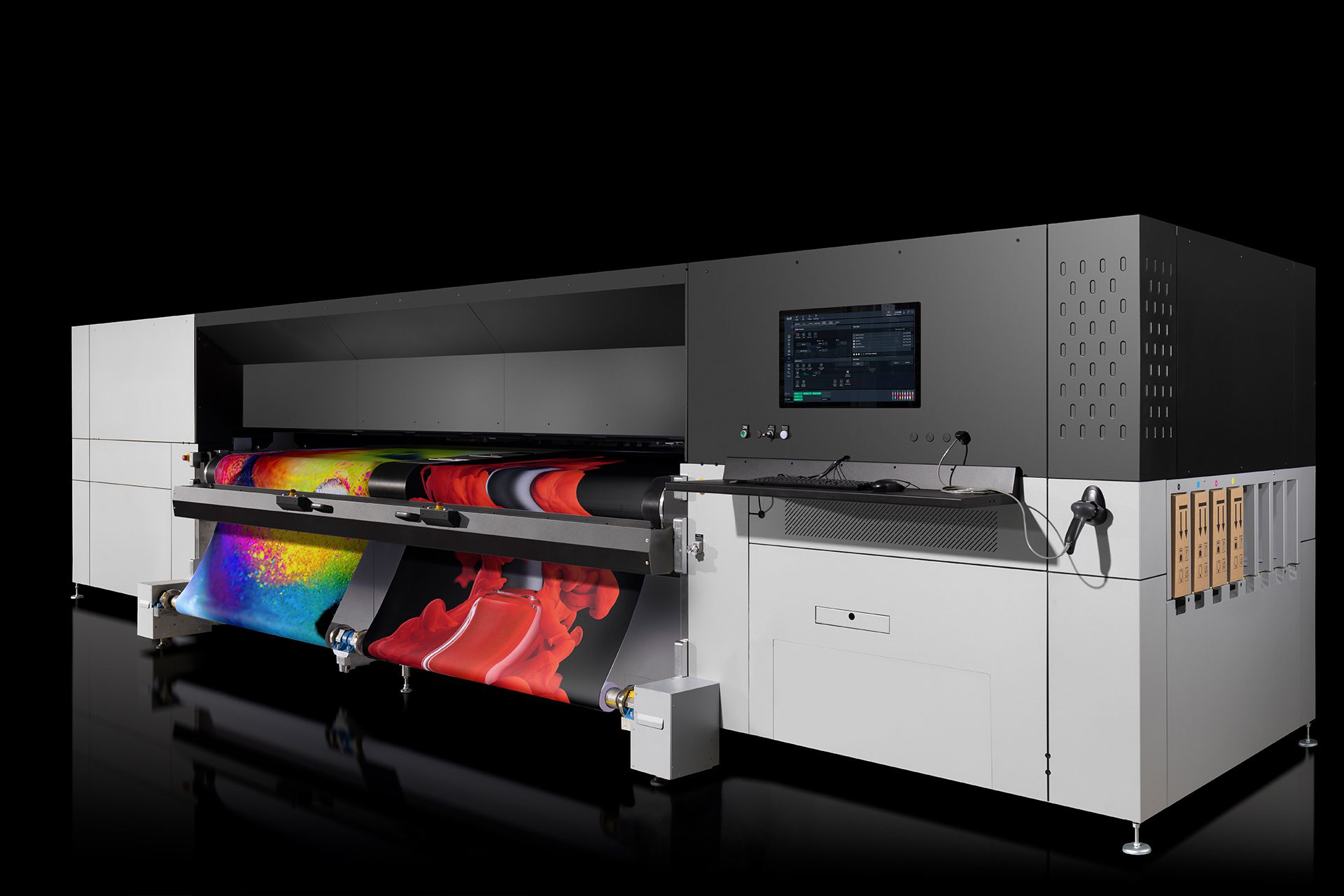

The Durst P5 350 HSR is the most productive large format roll printer with a 3.5 m printing width and designed for unattended production.
The P5 350 HSR integrated Mesh-System, changing material from Banner to Mesh or vice-versa is done in seconds, and the XY cutting system, which allows sheets to be cut without interrupting the printing process, also increases efficiency and productivity.
Efficiency is further increased via optional vertical and horizontal cutting units, which operate inline with the printing process.
The P5 350 HSR is equipped with an integrated roll support greatly simplifies media loading and changing. Rolls can be processed in multiroll and dual roll option. With the master roll (single & dual) with roll diameter up to 635 mm and a weight of 2,205 lbs.
|Resolution||700×1200 dpi; 900×1200 dpi|
|Drop Size||7 pl|
|Color Channels||up to 8|
|Max Printing Width||3500 mm (138 in.)|
|Max Roll Width||Single 3500 mm (138 in)|
Dual 1625 mm (64 in.)
|Max Roll Diameter||350 mm (13.8 in.)|
|Max Roll Weight||Single 280/260 kg with carbon axle/with aluminum axle|
Dual 280 kg
SIGNAGE AND ADVERTISING
Signage & advertising used to promote, inform, identify or give directions in areas such as the retail sector, shops, airports, stations, events and trade shows.
Indoor decoration for applications such as printing on wood, metal, plastic, furniture and wall papers and onto fabrics as well.
Ideal to generate a broad variety of outdoor applications such as outdoor signage, flags, billboards and posters.
Industrial decoration for special applications as wallcovering, flooring, furniture, utilizing UV-LED printing technology to achieve high resistance.
P5 350 HSR
P5 350 HSR INTRODUCTION
Durst Workflow is a revolutionary all-in-one solution, which includes all steps of pre-press and production in one single application.
Make your print production data transparent and utilize a data dashboard to optimize your production.
With Smart Shop we provide a comprehensive premium e-commerce solution for customizable print products.
Lift Software is a fully-customizable, cloud-based software suite comprised of easy-to-use-modules to run every aspect of your print business.
