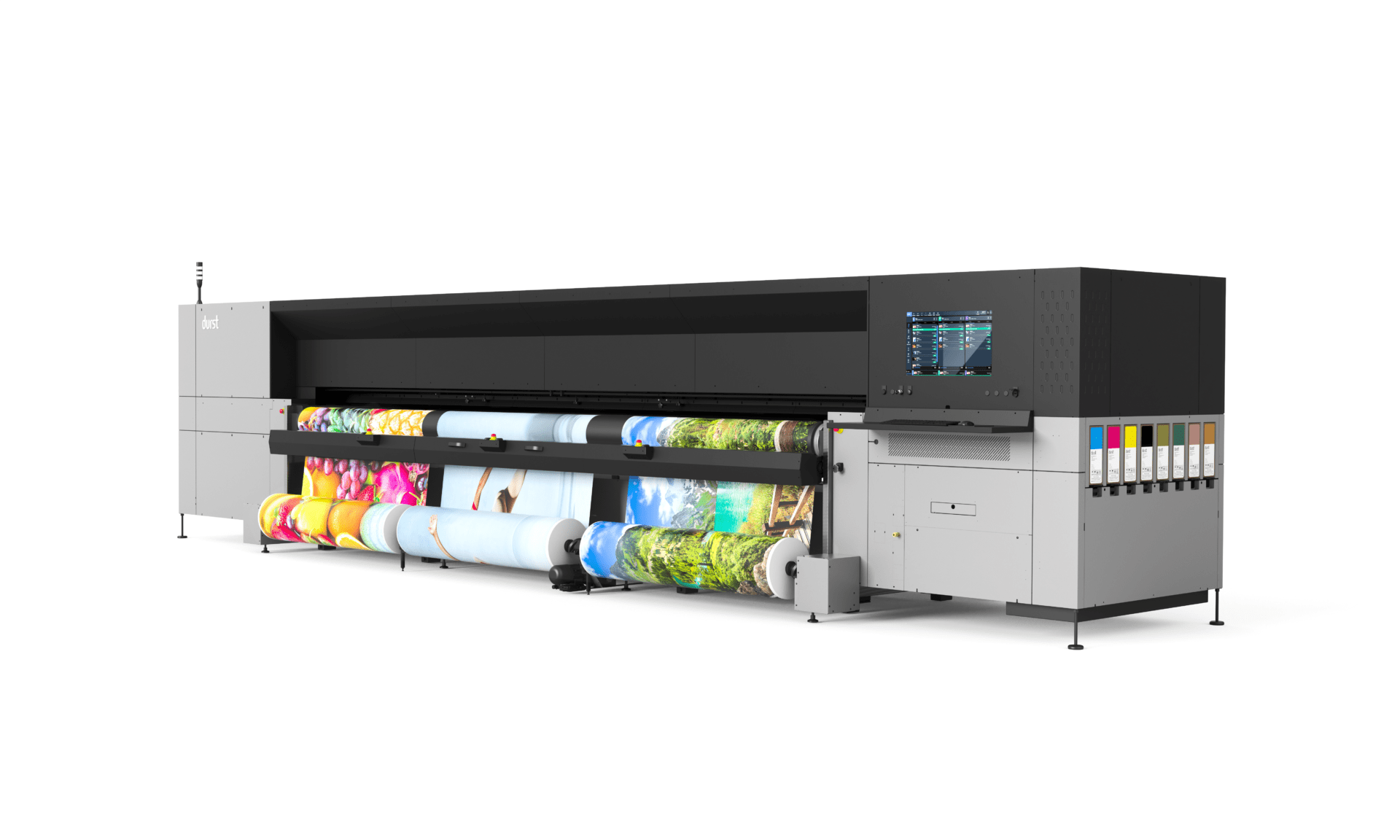

P5 500
The Pinnacle Level In Wide Format Printing
The Durst P5 500 is the most efficient 5-meter large format printer with LED curing technology for unattended production. With a printing width of 5.2 m, it is suitable for many roll-to-roll applications.
Safe ink refill
- Avoid wrong ink filling
- Ink batch scanning
- Inks expiration alert
- Mechanical lock and light alert
Easy media handling
- Pneumatic support for heavy rolls
- Media tension equalization system
- Easy media loading by 1 operator
- Protection edge holders
Cutting system
- Adjustable vertical slitters
- Horizontal cutter
- Continuous printing while cutting
- Roll to sheet operation
Retractable mesh printing system
- Integrated motorized belt for perforated media and mesh printing
- Fast media change
- Auto-cleaning belt system
Multiroll
- Dual/Triple Roll Option
- Triple Roll Option (includes asymm. Dual)
- Multiroll (Lower/Upper for Single)
P5 Technology
- Ricoh GEN5 printheads
- LED curing
- Heavy duty design
Production Excellence in Superwide Format
The P5 500 brings a superwide printing option to the P5 family. This robust printing system includes an inbuilt mesh kit, features an integrated horizontal cutting system which means the press, which includes options for single or multi-roll setup, does not need to stop while cutting, and an option for double sided registration. The P5 500 saves the operator time, increases productivity, and offers the highest efficiency of any 5-meter print solution.
Technical Specifications
| Specification | Value |
|---|---|
| Resolution | 700×1200 dpi; 900×1200 dpi |
| Drop Size | 7 pl |
| Color Channels | up to 8 |
| Max Printing Width | 5240 mm (213 in.) |
| Max Roll Width |
Single 5240 mm (213 in.) Dual symmetrical 2500 mm (98 in.) Dual asymmetrical 3200 mm + 1625 mm (126 in. + 64 in.) |
| Max Roll Diameter | 350 mm (13.8 in.) |
| Max Roll Weight |
Single 270/245 kg with carbon axle/with aluminum axle Dual 280 kg Triple 280 kg |
