Durst P5 Robotics takes automation for digital printing to the next level, ensuring flexible and continuous production cycles with minimal downtime. Designed for high-volume print operations, the system enables non-stop production with unattended printing, reducing labor costs and increasing efficiency.

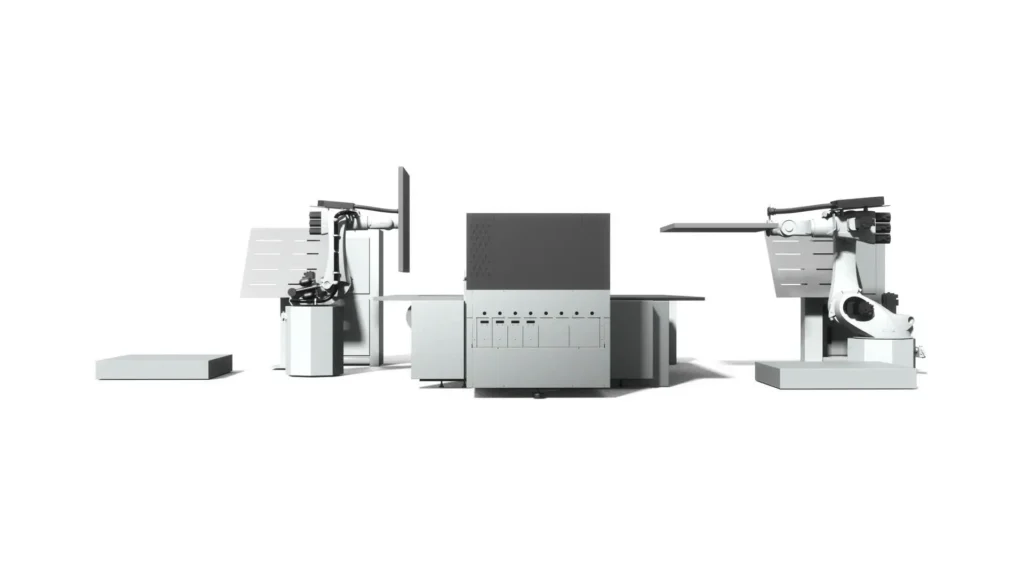

Following the introduction of the P5 Automat, an automated feeder/stacker system for flatbed printing, the next stage of automation is P5 Robotics. Designed for flexible and continuous production cycles with long run times. At the heart of P5 Robotics form a feeder/stacker unit with two Kuka robots to handle the unmanned production of a complete shift. The robots, modified and programmed by Durst, can pick up media from different pallets with a height of up to 180 cm, feed them and stack them again separately. In the process, the printed media can also be turned 180° for reverse-side printing and fed into a second printing system. P5 Robotics can also be expanded with third-party solutions or finishing systems.
| Specification | Kuka KR50 R2500 Iontec | Kuka KR120 R2700-2 Quantec |
|---|---|---|
| Servo Axes | 6 | 6 |
| Control System | Beckhoff | Beckhoff |
| GUI | Flex OP4 Icon | Flex OP4 Icon |
| Cycle Time (1,600 x 1,200 mm) | ~10 seconds | ~10 seconds |
| 180° Board Reversing | No | Yes |
| Alignment Accuracy | ± 0.3 – 0.5 mm | ± 0.3 – 0.5 mm |
| Board Weight | Up to 10 kg | Up to 10 kg |
| Stack Alignment Measurement | X, Y, Z | X, Y, Z |
| Footprint | ~5 x 7 m | ~6 x 7 m |
| Power Supply | 400 V, 32 A, 3-Phase | 400 V, 32 A, 3-Phase |
| Air Consumption | ~700 l/min | ~600 l/min |
