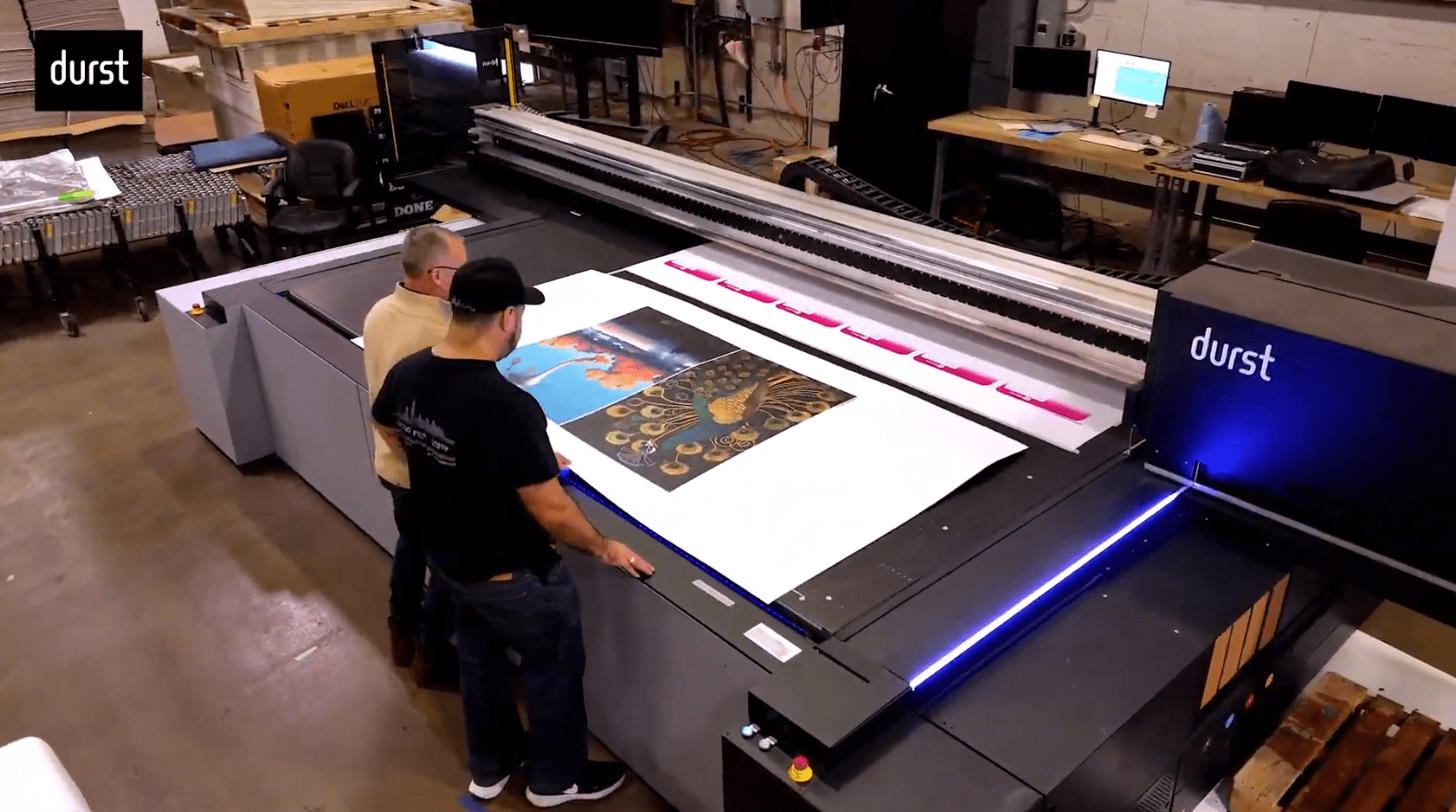

P5 X
The New Standard in True-Flatbed and Roll-to-Roll Printing
The P5 X is a versatile and efficient printing solution, designed for both true flatbed and roll-to-roll applications. Equipped with 10 color channels, including white and varnish for special effects, it offers ergonomic handling and unmatched flexibility.
Efficiency
- LED low energy consumption
- TWIN printing mode
- Multitrack printing up to
- 12 independent queues
Features
- TWIN Printing
- Reverse Printing
- LED multifunctional status bar
- Multitrack printing
- Double sided printing for Roll Option
High Quality Large Format Printing, Made in Durst
The P5 X is the latest addition to the Durst P5 line and is the first hybrid flatbed printer in the family. It offers quality, precision and versatility with advanced features such as LED low-energy consumption, twin printing, reverse printing, and multitrack capability for up to 12 independent queues, the P5 X delivers superior efficiency. High-precision printing is ensured through a 12-zone vacuum table, magnetic linear drivers, and an accurate media registration system. The result is exceptional print quality with consistent colors, smooth gradients, and sharp, detailed text.
Technical Specifications
| Specification | Value |
|---|---|
| Resolution | 700 x 1,200 dpi, 900 x 1,200 dpi |
| Drop Size | 7 pl |
| Color Channels | up to 10 |
| Max Printing Width | Boards 3,250 mm x 2,150 mm (180 x 84.6 in) |
| Max Roll Width |
Single 3,500 mm (137.8 in) Dual (side by side) 1,600 mm (63 in) |
| Production speed | up to 120 sqm/h (1,291 sqft/h) |
| Max. Board Thickness | 70 mm (2.76 in) |
